Home > Product > Spray drier

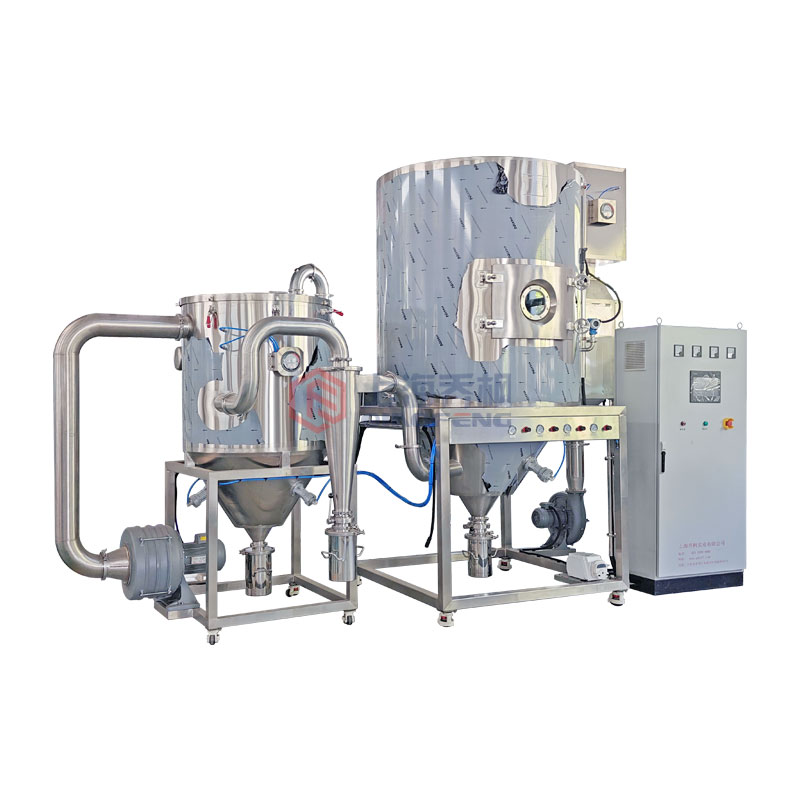

Centrifugal spray drier

Device name:	High speed centrifugal spray dryer
Equipment type:	qfn - l - 10
Equipment specifications:	5Kg/h (support customized)
Test machine:	Support test making experiment
Scope of application:	Powdered and granular solid products are produced in solution, emulsion, suspension and paste liquid raw materials.
Application scenario:	Scientific research, chemical industry, food, pesticide, medicine, biological industry, etc.
Is it guaranteed?	National three year warranty
Telephone:	17317246351

Buy online

Detail

1. product features:

The electric centrifugal atomizer, centrifugal atomizing spray head, the particle size distribution of the material is steeper and the particle distribution is even.
Color large touch screen operation, automatic control and manual control combined, Chinese and English panels, parameter LCD display.
Real time control of PID thermostat control technology, accurate temperature control, heating temperature control accuracy of + 1 degrees Celsius.
The drying speed is fast, generally only 1-1.5 seconds, with instantaneous drying characteristics.
The drying process is completed in a short time, which is suitable for drying the heat sensitive material and keeping the original characteristics of the material.
The production process is simplified, the intelligent operation of the touch screen is easy to control, and it is suitable for the experimental type.
The product has good dispersibility, fluidity and solubility.

3. device parameters

Centrifugal spray dryer	qfn - l-Five	qfn - l-Ten	qfn - l - 15
Water evaporation	5Kg/h	10Kg/h	15Kg/h
Minimum feed volume	80ml	120ml	150ml
The diameter of the drying chamber (mm)	￠800	￠1200	￠1600
Height of dry tower (mm)	￠800	￠1200	￠1500
Atomization structure	Centrifugal atomizer (QFN-L-RODVER2018-1A) speed: 32000r/min (adjustable)
Electronic control system	Qiao Feng centrifugal atomization system (QFN-L-ES-VER2018-1A)
Maximum inlet temperature (centigrade)	Two hundred and sixty
Heater capacity	10kw	20kw	28kw
Air blower [power (kw), air volume (m /min)]	nothing	[0.25,9.5]	[0.25,9.5]
Draft fan [power (kw), air volume (m /h)]	[1.5，250]	[2.2，300]	[2.2，1410]
Compressor [power (kw), air volume (L /min)]	[0.58，108]	[1.5，250]	[1.5，250]
Electric power (installed capacity)	15kw	35kw	45kw
Thermal insulation material	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton	50mm glass fiber insulated cotton
Shape size (mm) (L x W x H)	1600×1400×1800	2200×1600×2200	2600×1200×2500
Installation weight (Reference)	300kg	600kg	1000kg

Power supply

380V/-3: it can be customized according to different national standards.

Water vaporization at the inlet temperature of 250 degrees centigrade, 1:
2: for more evaporation equipment, please inquire online or call our company.
